PROCESSING MATERIALS WITH STAR BURST™
Application examples: micronization of materials for Batteries.
Explore the use of Star Burst for batteries and battery-related materials.Please note: The magnifications of microscope images before and after processing are not always the same.
Oxide Solid Electrolyte
Raw material: LLZ-AL (Li6.25La3Zr2Al0.25O12) without dispersant
Pressure: 200MPa
| Number of Passes | Before Processing | 1 | 10 | 20 | 30 | 40 | 50 |
|---|---|---|---|---|---|---|---|
| Particle size distribution measurement results:Major diameter: D50〔㎛〕 | 7.06 | 2.32 | 1.04 | 0.89 | 0.81 | 0.75 | 0.67 |
SEM Image
Untreated median diameter:
7.06㎛ 20pass • median diameter: 0.89㎛ 50pass • median diameter: 0.67㎛
Before Process
20 Passes
50 Passes
Sulfide Solid Electrolyte
Raw materials: LSPS (Li10SnP2S12) dispersant
Pressure: 200MPa
| Number of Passes | Before Processing | 1 | 10 | 20 | 30 | 40 | 50 |
|---|---|---|---|---|---|---|---|
| Particle size distribution measurement results:Major diameter: D50〔㎛〕 | 12.77 | 6.74 | 4.37 | 4.09 | 3.25 | 2.47 | 1.51 |
Microscope Image
Untreated Median diameter:12.77㎛ 20pass • Median diameter: 4.09㎛ 50pass • Median diameter: 1.51㎛
* Partial reaggregation
SAMPLE TESTING AVAILABLE IN OUR CHICAGO LOCATION
Start processing raw materials without the typical challenges.
Get Started
Star Burst can be used for:
Active Materials Dispersion

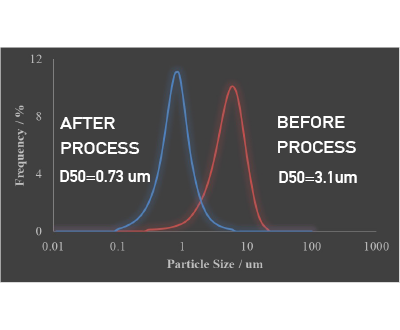

Silicon Dispersion

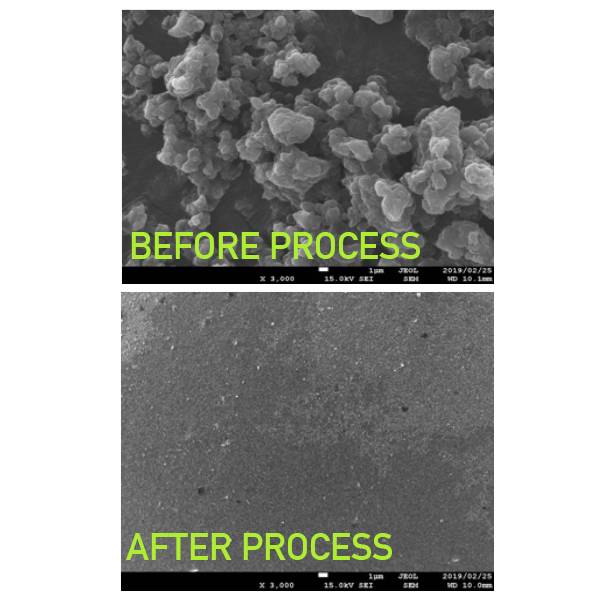

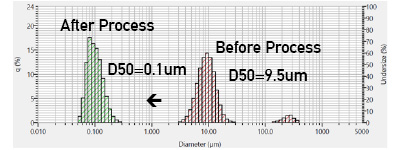

Carbon/Binder Homogenization

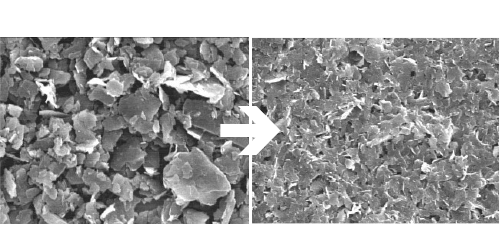

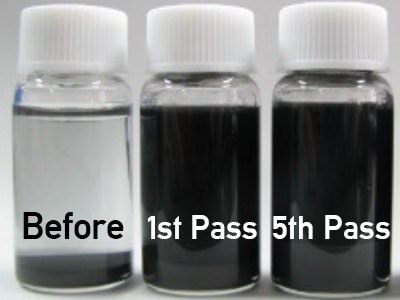

Carbon Materials Exfoliation
Good Stability of Dispersion
